Diverter Cartridge for 2-Way 2-Handle CVC & CVD Concealed Shower Valves (ABSP-10-0012)

  • NSS ABSP-10-0012
  • RRP:£25.00 + VAT
  • Trade Price:Login Required
  • Postage:...
  • Availability:...
  • Despatch:...
  • Returns:...

  • Product Description:

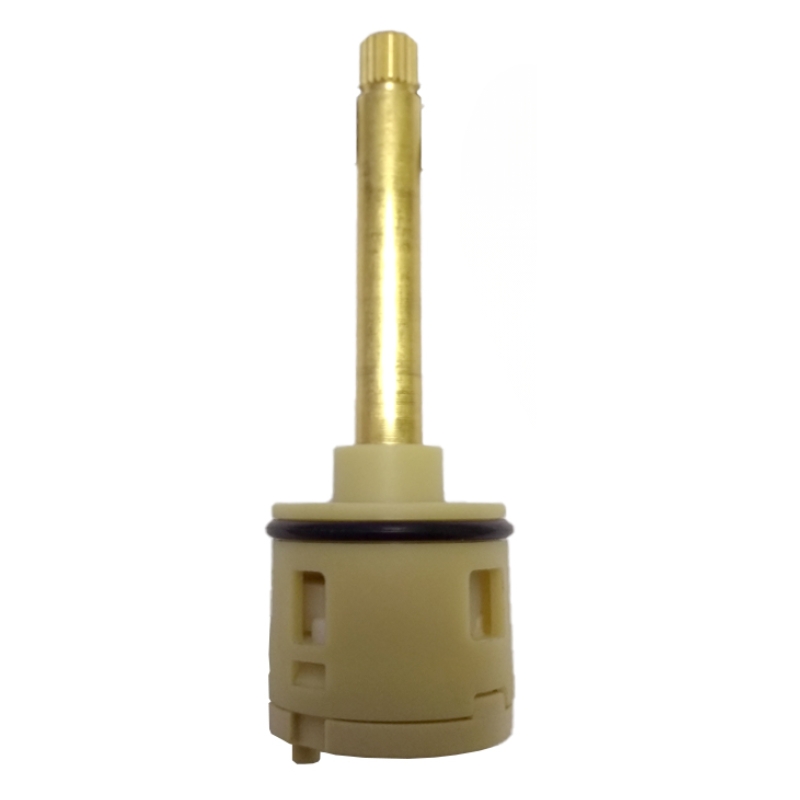

    Diverter Cartridge for 2-Way 2-Handle CVC & CVD Concealed Shower Valves (ABSP-10-0012).

    • Total length: 99.5mm (not including the two lower prongs)
    • Diameter of plastic body: 33mm
    • Diameter of brass splines: 9.5mm
    • Length of brass rod:62.2mm
    • 1 O-ring around the cartridge body

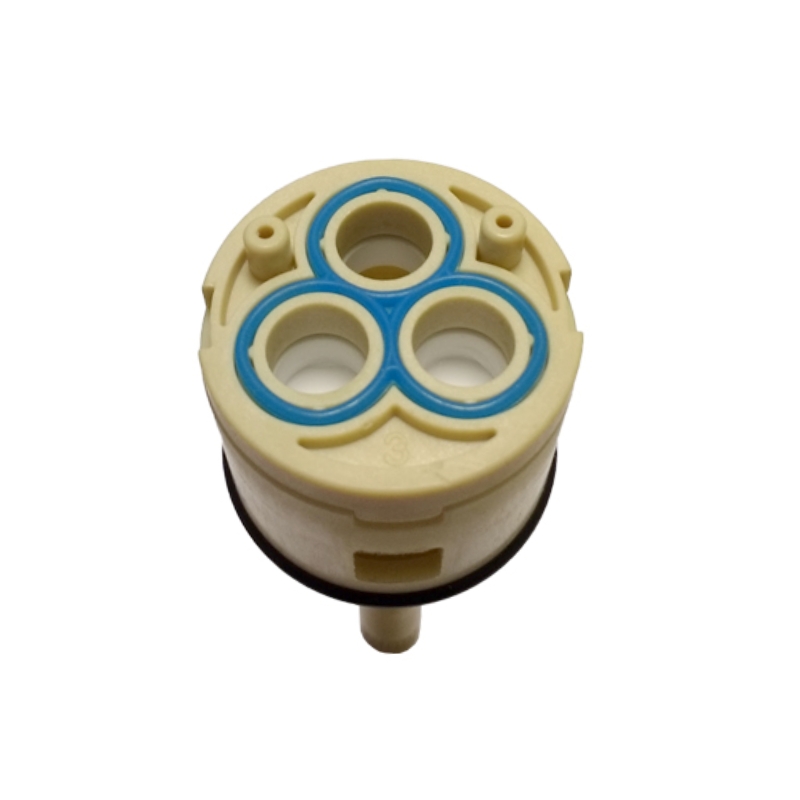

    • 2 prongs on base of cartridge body to ensure it is correctly oriented in the valve body
    • 3 open holes in the base
    • No screw threads on the plastic cartridge body (cartridge is held in place using a brass collar)
    • Suitable for 2-way 2 handle CVC & CVD concealed shower valves

    NOTE: Please ensure the correct cartridge is chosen by comparing your cartridge to the images, paying particular attention to the number of O-rings and the additional details.

    Product Specifications:

    • Brand NSS
    • Name Diverter Cartridge for 2-Way 2-Handle CVC & CVD Concealed Shower Valves (ABSP-10-0012)
    • SKU / MPN NSS ABSP-10-0012
    • Categories NSS Shower Cartridges
      Shower Cartridges
    • Colour Cream
    • Fitment Push In
    • Type Diverter
    • Condition Brand new
    • Manufacturer Guarantee Yes
